YamahaMG10 10-Input Stereo Mixer

Yamaha MG10

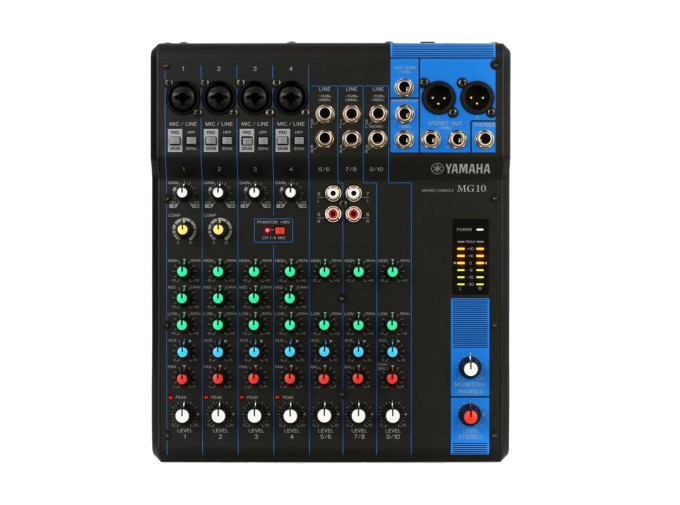

The Yamaha MG10 is a ten-channel analog mixer that is perfect for mobile high-quality mixing. Yamaha's D-PRE mic preamps are the heart of the MG line and provide high quality amplification. The MG10 features ten channels, four combo XLR inputs and six line inputs (three stereo pairs). Additionally, there are four RCA inputs (two stereo pairs) can be used in lieu of channels five through eight. Each of the channels has EQ control with high and low controls; channels one through four additionally include a control for the mid range EQ. Channels one through four also include phantom power as well as gain control, -26dB pad, and 80Hz high pass filter. Channels one and two feature one knob compressors, which easily allow you to dial in the right compression for your mix. Outputs include two main XLR outputs, a pair of stereo outputs, two monitor outputs, headphone out, and an AUX send.

MG10 Features

• 10-channel analog mixer
• D-PRE preamps
• EQ per channel
• XLR and 1/4" outputs
• Monitor and aux send outputs
• +48v Phantom power
• Single knob compressor for channels one and two
• -25dB pad protection
• 80 Hz high pass filter
• Sturdy metal chassis
