Intellijel DesignsLine-In 1U Line Level Input
Item#
N13-0175
10hp
$39.00
-
No Hassle
Returns - Extended
Warranty - Low Prices
Guaranteed

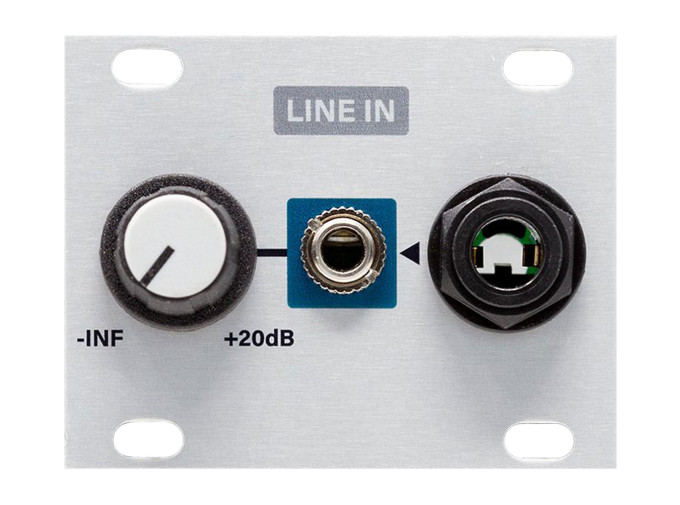

Intellijel Designs Line-In 1U
Intellijel's Line Input 1U continues their line of incredibly handy utilities in their proprietary 1U format, now making it easier than ever to integrate external instruments and processors into the Eurorack ecosystem. Offering a TRS 1/4" input with up to 20dB of gain, Line Input 1U makes it possible to integrate external synths and drum machines, signal processors, and more into a Eurorack processing setup.
Line-In 1U Features
- Line input module in Intellijel 1U format
- Boosts -10dBV or +4dBU balanced line level signals to Eurorack signal level
- Balanced TRS 1/4" input
- Variable gain from -infinity to +20dB
- Boosts gain via high-quality THATCorp IC
- Eurorack module
- Width: 10hp
- Depth: 27mm
- Current draw: 9mA @ +12V, 9mA @ -12V
Product Demo Videos
Intellijel Line In 1U
Line In 1U
Balanced Line Level Input to Eurorack level Shifter in 1U
This module allows you to connect balanced line level audio (+4 dBu) into your Eurorack modular system. It is a compact and easy way to patch in a rack mount/desktop FX units, external line-level instruments like synths and drum machines, outputs from your DAW, or many other line level sources.
Features:
1 x Balanced TRS 1/4″ input path to Eurorack modular signal level.
Uses a high quality THATCorp balanced line receiver IC
Input path boosts a -10dBV or +4dBU balanced line level signal to Eurorack modular signal with adjustable gain.
Balanced Line Level Input to Eurorack level Shifter in 1U
This module allows you to connect balanced line level audio (+4 dBu) into your Eurorack modular system. It is a compact and easy way to patch in a rack mount/desktop FX units, external line-level instruments like synths and drum machines, outputs from your DAW, or many other line level sources.
Features:
1 x Balanced TRS 1/4″ input path to Eurorack modular signal level.
Uses a high quality THATCorp balanced line receiver IC
Input path boosts a -10dBV or +4dBU balanced line level signal to Eurorack modular signal with adjustable gain.
